DETAILED INSTALLATION VIDEO AND DYNO CHARTS FROM PANDA MOTORWORKS ON YOUTUBE

DETAILED INSTALLATION VIDEO FROM MR ERSKINE ON YOUTUBE



SEE FEEDBACK FROM THE MAVERICK COMMUNITY HERE:

Detailed installation thread by user Tunedtremor on MaverickTruckClub.com

Detailed installation thread by user Tscottok on MaverickTruckClub.com



• 30+ degree reduction in Charge Air Temperature (IAT2) observed in real-world conditions (details in chart below)

• Direct bolt-on replacement (trimming of plastic shroud is required)


• 240%+ larger than stock (6 x 6 x 24 in. core)


• Features proprietary CVF core which has been optimized specifically for this application (not a generic, off-the-shelf core)

• Supports up to 550 HP

• Includes mounting hardware for vehicles not equipped with tow hooks

• CVF Lifetime Warranty

LESS HEAT, MORE POWER

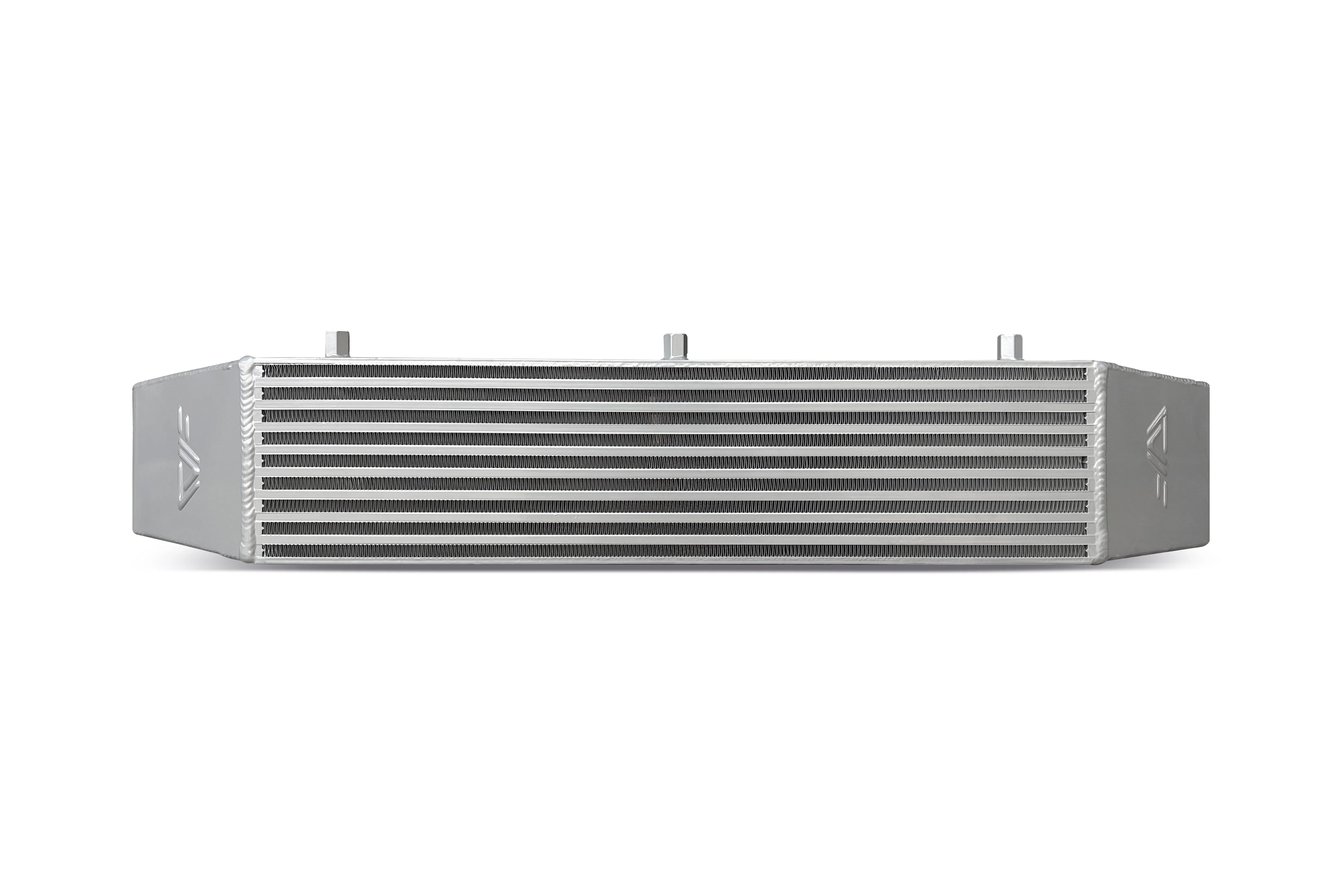

The CVF Performance Intercooler for the Ford Maverick is a direct fit replacement that is over 240% larger than the stock unit. As the charts above indicate, during independent testing we've observed a reduction of 30+ degrees in Charge Air Temperature where it matters: on the street, and not at the dyno (the same vehicle under similar conditions).

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Performance Intercooler features a TIG-welded bar-and-plate design for maximum durability and end tanks featuring the CVF logo to ensure maximum flow of air into the unit and out to your turbo - equaling more top-line power and significantly reduced heat soak.

APPLICATION AND INSTALLATION

Trimming of plastic shroud is required due to the increased size of the intercooler. Check engine lights will not be activated.

This part installs on the following vehicles:

• 2022-2025 Ford Maverick 2.0L

• 2020-2025 Lincoln Corsair 2.0L

• 2020-2022 Lincoln Corsair 2.3L

• 2020-2025 Ford Escape 2.0L
